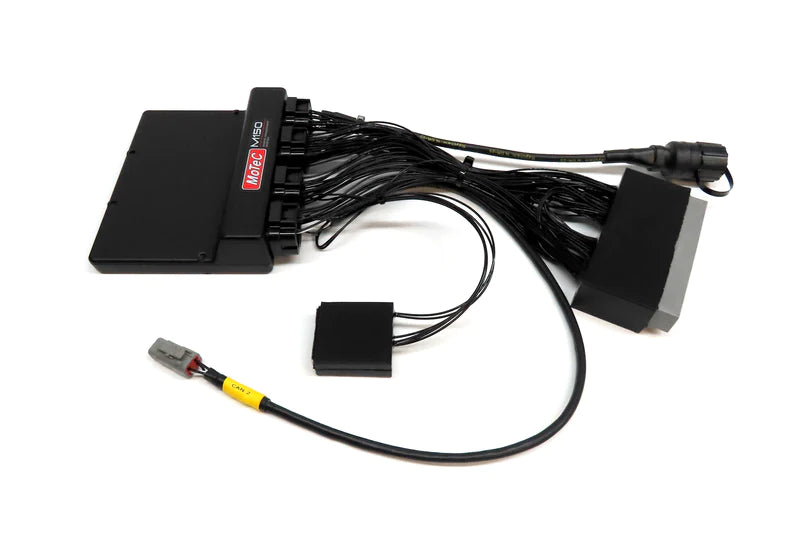

SUBARU STI 2008+ M150 PNP KIT

JRR Subaru STi 2008+ M150 PNP Kit

• This full standalone kit replaces the stock ECU and provides a powerful tuning solution. The M150 kit plugs right in to your Subaru STi and includes a start up calibration customized to your setup

• This kit is available for multiple versions of Subaru STi from 2008 to 2019. If you have a non-USDM version, please let us know when you order so we can determine which PNP harness you need.

• The included firmware suits Subaru EJ 4 cylinder engines with single or dual AVCS, 36-2-2-2 crank trigger pattern, 4-1 inlet cam pattern, 2 tooth exhaust cam pattern (dual AVCS) and no separate sync sensor

• Full integration with Subaru STi OE CAN bus - maintains proper vehicle operation and dash functionality

• Supports the OE DCCD active center differential ECU, or the DCCD can be connected to the M1 ECU via a optional PNP pigtail which allows full mapping of the DCCD system from within M1 Tune

• Supports the factory cruise control including the steering wheel controls

• Flex fuel control - adjust fuel, timing, boost, cold start and more based upon ethanol content

• iDrive switch (if equipped) can be used for any driver switch function in the M1 (boost/throttle/fuel trim/anti lag maps etc)

• Supports running two separate fuel systems - each running a different type of fuel

• Nitrous control - various parameters supplied to control nitrous. Includes nitrous bottle heater relay control based on nitrous pressure

• CO2/wastegate pressure control - controls a fill/bleed solenoid setup to control wastegate pressure

• Water injection control - with failsafe for boost/timing/fuel based on pressure sensor feedback

• Air bypass anti-lag control - using pneumatic valve with solenoids or servo valve

• Turbo shaft speed limiting

• Supports the use of third party lambda controllers with 0-5v output signal

• Supports momentary buttons

• Supports direct input from a MoTeC/Racegrade CAN keypad
