The system was developed for use on armored off-road vehicles Toyota Land Cruiser 200. In such cars, special requirements are imposed on the braking systems. The brake system StopTech HD corresponds to them completely.
It is installed on cars Toyota LC 200, Lexus LX 570 (I-II generation) without additional adapters (bolt-on).
Significant improvement in braking compared to the standard braking system;
Improved cooling of brake discs due to patented AeroVane technology;
Increased brake calipers for efficient braking of a car with a high weight;
Compatible with most steel and alloy wheels with a diameter of 17-18 inches without spacers, fully compatible with factory-made wheel disks;
Developed in conjunction with the manufacturer of vehicles (Toyota Group);
Certificate of TÜV.

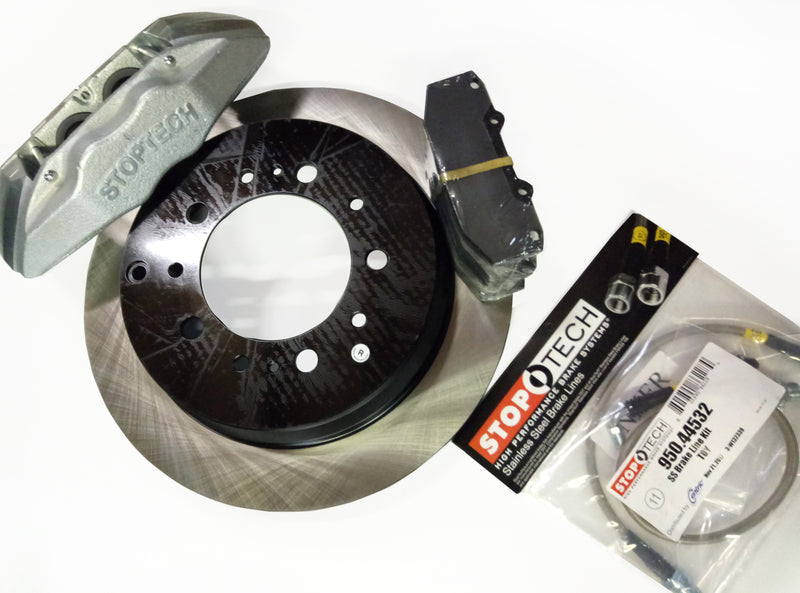

Brake discs in front: 354 x 34 mm, AeroVane;
Caliper front: ST-HD six-piston;
Rear brake discs: 354 x 28 mm, AeroVane;
Rear caliper: ST-HD four-piston;
Highly effective pads;
Instructions for installation.
Testing of brake systems on armored Toyota LC 200
Car Lexus LX 570 MY`12 (Light Armor), weight about 8 000 kg. Test tests were conducted from 64-0, 98-0, 128-0 and 161-0 km / h with both configurations of brake systems. The ABS system is activated.
Tests from 98-0 km / h were interrupted after 10 stops due to overheating of the brakes.
Brakes "floated" during braking 64-0 km / h after 11 braking, when braking 98-0 km / h after 9 braking, 128-0 km / h after 4 braking.
When braking from 98-0 km / h, the stopping distance to stop was 43.5 m
When braking from 161-0 km / h, the stopping distance to stop was 75.9 m
After 16 braking, 98-0 km / h, the efficiency remained without noticeable changes.
When braking from 98-0 km / h, the stopping distance to stop was 40.8 m
When braking from 161-0 km / h, the stopping distance to stop was 73.5 m
98-0 km / h
161-0 km / h
- maximum braking efficiency
- reduction of stopping distance
- high accuracy of brake control
- minimum heating
- No noise during vibration
- reduced wear
- quick and easy installation without spacers
This brake system is an update STOPTECH 82.00A.6M47.10 Brake system ST HD (front + rear) for TOYOTA LC200 / LX570, completed with bolts 14mm
