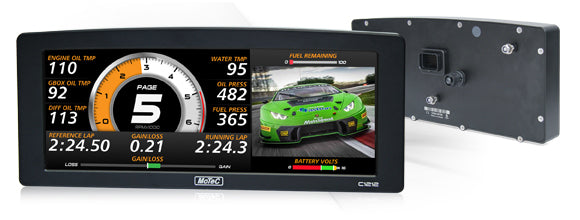

The C1212 is a model in MoTeC's range of Displays and Display Loggers, featuring an impressively generous, high resolution, full colour screen. Stylishly designed with powerful functionality, the C1212 provides all the benefits of a sophisticated display plus data logging and auxiliary control in one streamlined device.

This model also includes a composite video input as standard (e.g. for a rear vision camera), and USB Logging to a removable storage device as an optional upgrade.

Measuring 311mm (approx. 12 inches), the ultra bright C1212 screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the Display Creator upgrade.

BASIC SPECIFICATIONS

Display

• Screen: Colour TFT LCD, anti-reflective
• Resolution: 1280 x 480, anti-aliased graphics
• Selectable fixed layouts with channel and label configurability

• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable 'pages', for example Practice, Warm-Up, Race

Communications

• 2 x Configurable CAN buses with individually programmable CAN bus speeds
• One can be used as RS232 Receive
• RS232: 2 x RS232 ports
• One with Transmit and Receive
• One with Receive only

Physical

• Dimensions 340.8 x 147.6 x 34 mm excluding connector

• Weight 1.690 kg

• 1 x 34 pin waterproof connector
• 1 x mini USB port


Logging (optional - requires Logging Upgrade)

• Level 1: 120 MB logging memory
• Level 2: USB Logging to a removable storage device (flash drive)
• 32 GB USB storage devices available
• Logging rates up to 500 samples per second
• Fast Ethernet download
• Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs

• 2 x Digital inputs
• 3 x Speed inputs
• 1 x Composite Video Input for the connection of a PAL or NTSC camera

Inputs (optional - requires I/O Upgrade)

• 6 x Analogue voltage inputs
• 2 x Analogue temperature inputs

Outputs (optional - requires I/O Upgrade)

• 4 x low side outputs
• PWM or switched operation

Internal Sensors

• 3-axis G sensor
• Dash temperature sensor
• Sensor supply voltage
• Battery voltage
