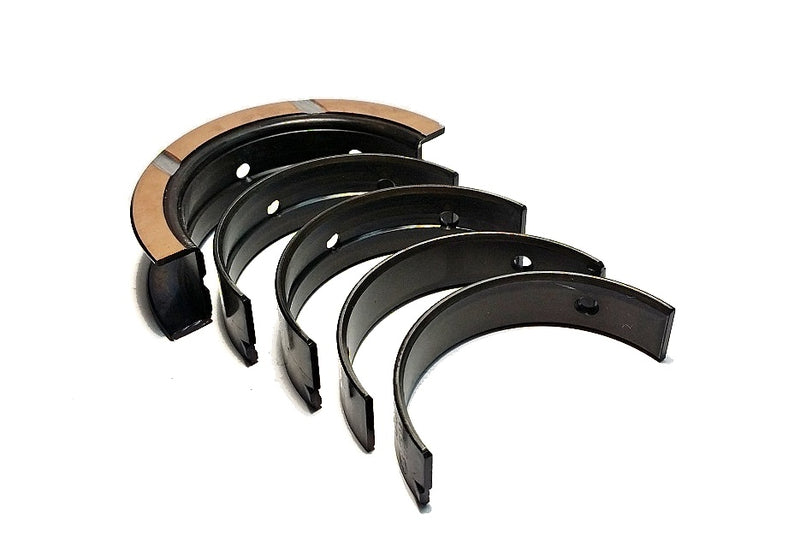

ACL 5M1695H-STD Main Bearing Set TOYOTA 4AGE / 4AGZE

by ACL
SKU 5M1695H-STD
Original price Dhs. 365.00 - Original price Dhs. 365.00
Original price
Dhs. 365.00
Dhs. 365.00 - Dhs. 365.00
Current price Dhs. 365.00

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:


  • High strength overlay plate with reduced thickness for improved fatigue properties.
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention.
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.





Race Series Application Guide can be downloaded here
